Why to use the“Amorphous Transformer“

There are two kinds of loos of transformer : one is un-loaded loas and the other one is loaded loss. The first one is two time greater than the latter one. By using Amorphous Alloy as core material ca nsignificatnly reduce the un-loaded loss. The follow is the coparison chart for your reference.

Material name
Amorphous Alloy
METGLAS 2605S2
METGLAS POWERCORE
Oriented Electrical Steels G6H
ingridient
Fe(78%),B(13%),Si(9%)
Fe(78%),B(13%),Si(9%
Fe(97%),Si(3%)
core loss 1.4T/60Hz (W/Kg)
0.21
0.24
0.80
magnetic flux density 25 ℃ (T)
1.56
1.56
2.03
exciting current VA 1.4T/60Hz (VA/Kg)
0.37
0.55
0.94
temperature ( ℃)
415
415
745
density (g/ c㎡ )
7.18
7.15
7.65
space occupancy (%)
>75
>80
>94
crystalization temperature ( ℃)
550
550
-
hardness(HV)
900
900
170
tear strenght (kgf/m㎡)
150
150
32
thickness (mm)
0.02~0.03
0.12~0.18
0.23~0.30
magnetic annealization
380~400
-
-
annealization
-
-
750~850
characristic
brittle after annealization
brittle
-

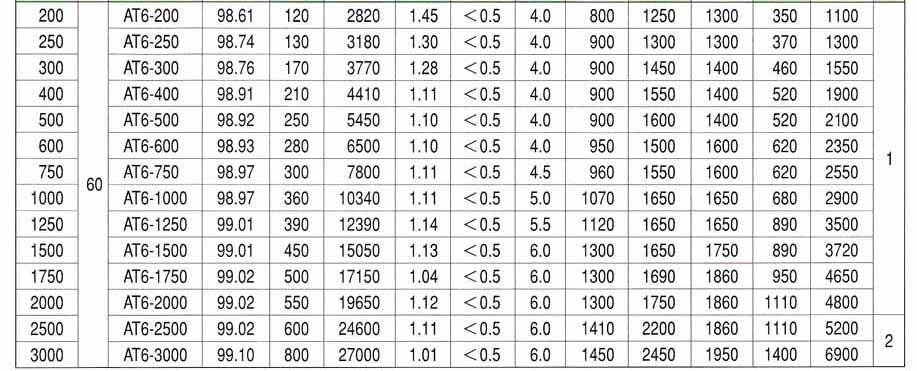

Three phase distribution amorphous transformer

● 24/12KV

KVA
Hz
Type
Efficiency (%)
no load loss (W)
Total loss (W)
Voltage regulation (%)
no load current (%)
IZ (%)
dimension A(mm)
dimension B(mm)
dimension C(mm)
oil (L)
weight (KG)

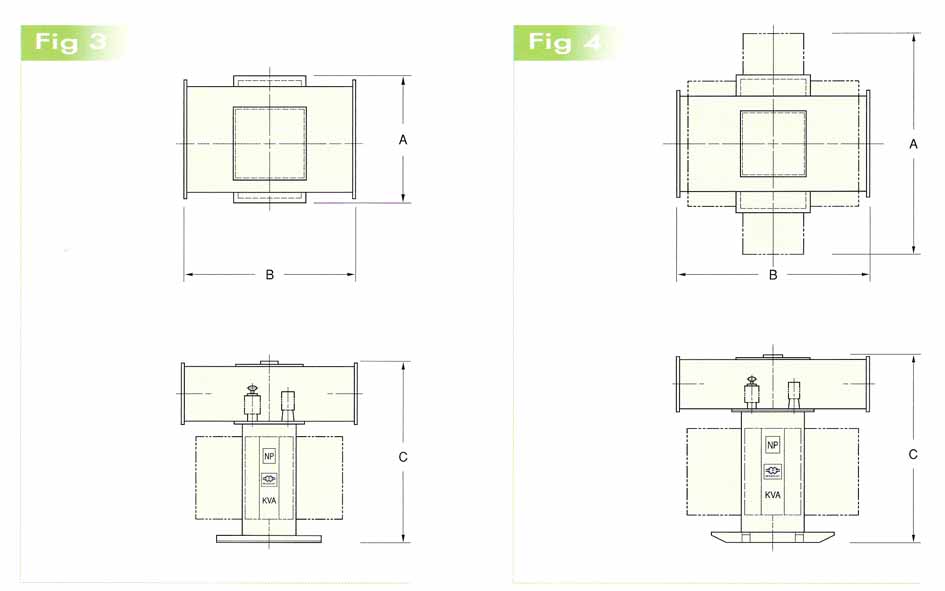

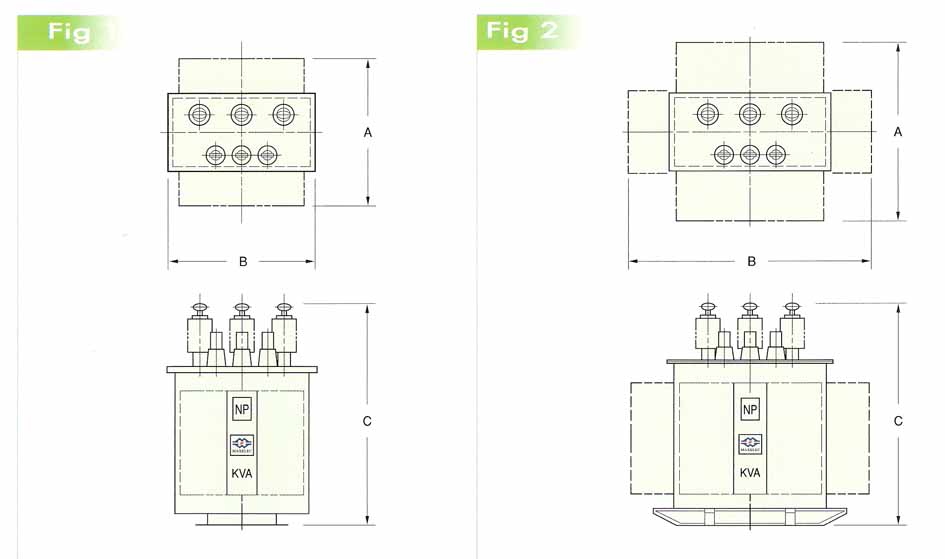

Fig

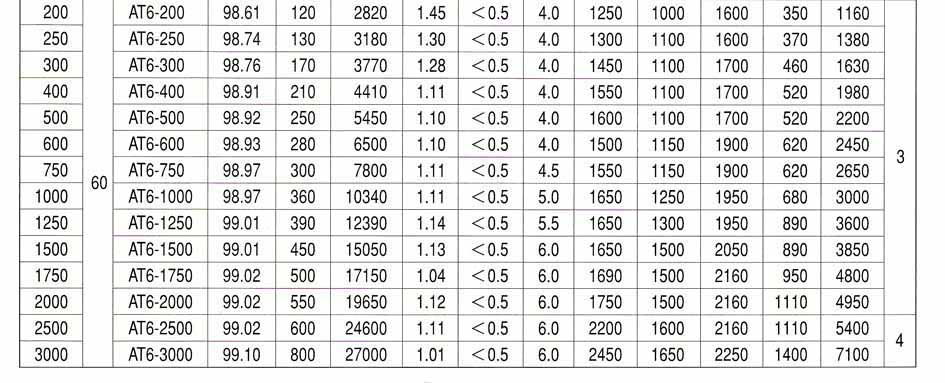

Three phase duct type distribution amorphous transformer

● 24/12KV

KVA
Hz
Type
Efficiency %
no load loss (W)
total loss (W)
voltage regulation (%)
no load current (%)
IZ (%)
dimension A(mm)
dimension B(mm)
dimension C(mm)
oil (L)
weight (KG)
Fig

◆ according to CNS，IEC，ANSI or other standard which required by customers.

◆ also accept order of 50Hz or other frequency which required by customers.

◆ accepting order of single/three phase transformer below 24KV.

◆ if you need amorphous cast resin transformer, please feel free to contact us for detail information.





Designed by Maxwell Electric Co. LTD.

Copy Right 2021
